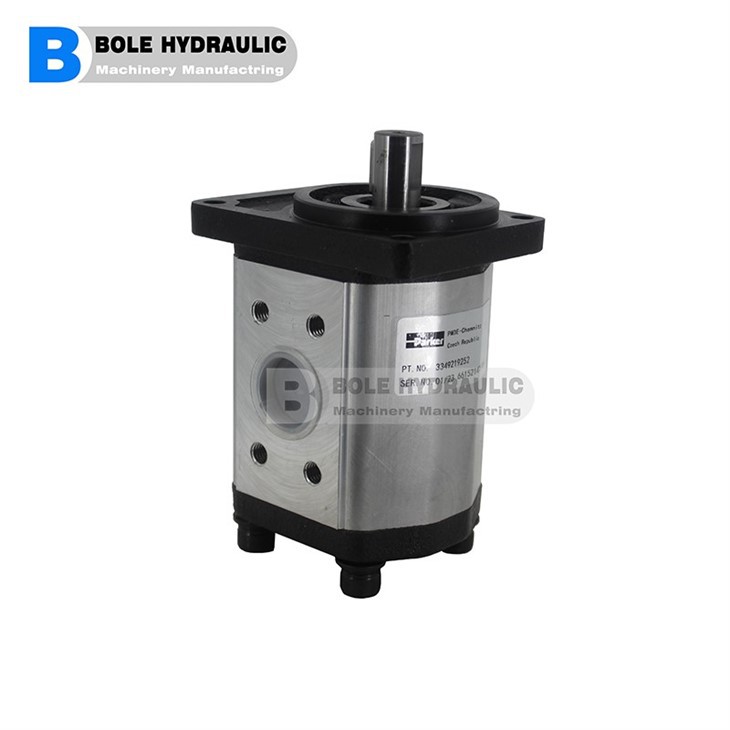

Aluminium Gear Pump ALP1
PA-ALP1 iav twj tso kua mis yog ib qho ntawm ib qho txhuas txhuas hydraulic twj uas muaj kev ua haujlwm siab. Muaj nyob rau hauv SAE A, SAE AA, lossis SAE B hauv ib qho kev sib hloov lossis thim rov qab. Rau siv nyob rau hauv industrial thiab mobile daim ntaub ntawv..
|
Lub npe |
PA-ALP1 Series Hydraulic iav twj tso kua mis |
|
Series |
Series 1 |
|
Qhov ntau thiab tsawg |
1. 4 2 1 2. 3 11 13.8cc/rev |
|
Nominal Siab |
230bar ua |
|
Siab siab tshaj plaws |
250bar ua |
|
Hom kev ua haujlwm |
External Gear Pumps |
|
HOM |
Kev khiav tawm |
FLOW ntawm |
MAX TSHUAJ |
MAX SPEED |
||
|
P1 |
P2 |
P3 |
||||
|
|
cm³/rov |
litri/min |
bar |
bar |
bar |
rpm ua |
|
ALP1-D(S)-2 |
1.4 |
2 |
250 |
270 |
290 |
6000 |
|
ALP1-D(S)-3 |
2.1 |
2.9 |
250 |
270 |
290 |
6000 |
|
ALP1-D(S)-4 |
2.8 |
3.9 |
250 |
270 |
290 |
5000 |
|
ALP1-D(S)-5 |
3.5 |
4.9 |
250 |
270 |
290 |
5000 |
|
ALP1-D(S)-6 |
4.1 |
5.9 |
250 |
270 |
290 |
4000 |
|
ALP1-D(S)-7 |
5.2 |
7.4 |
230 |
245 |
260 |
4000 |
|
ALP1-D(S)-9 |
6.2 |
8.8 |
230 |
245 |
260 |
3800 |
|
ALP1-D(S)-11 |
7.6 |
10.8 |
200 |
215 |
230 |
3200 |
|
ALP1-D(S)-13 |
9.3 |
13.3 |
180 |
195 |
210 |
2600 |
|
ALP1-D(S)-16 |
11 |
15.7 |
170 |
185 |
200 |
2200 |
|
ALP1-D(S)-20 |
13.8 |
19.7 |
150 |
165 |
180 |
1800 |
